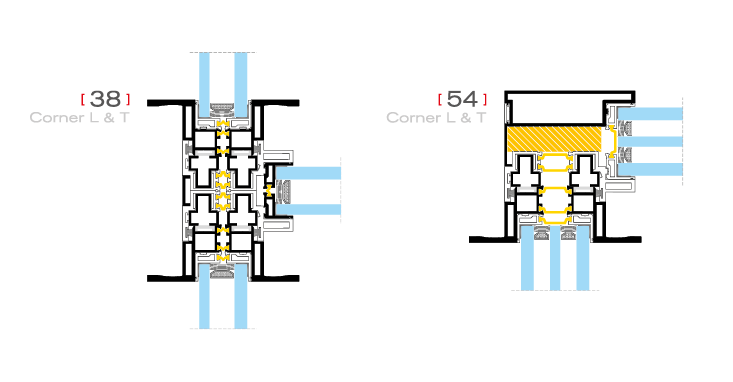

[38][54]
CORNER M-CR

“U-minimal Corner (M-CR)” offers unobstructed views and angles, creating a trapping angle without a fixed profile extending the view beyond 180 degrees.
In “U-minimal Corner (M-CR)” can be applied to multiple drivers at both directions covering the larger apertures. “U-minimal (M-CR)” can be combined with other types of the series such as pocket and invisible, removing any imperceptible obstruction when opening them.
The angle of “U-minimal (M-CR)” combines the possibility of creating a corner and a “T” type trap, offering solutions even in the most demanding situations.“U-minimal (M-CR)”offers new construction possibilities by eliminating the necessity of walls and closed corners, declining the conventional architectural design for a more open space approach, giving the designer the capability to enclose entire rooms with thermally insulated sliding aluminium systems.
“U-minimal Corner (M-CR)” offers extreme versatility to any given interior or exterior spaces, taking advantage of open spaces available in your residence.
MAX DIMENSIONS / PANEL | GLAZING THICKNESS | WEIGHT / PANEL | FRAME WIDTH | FRAME HEIGHT |
---|---|---|---|---|
2,8 x 6,0m | 38mm double glass | 1000 kg | 70mm per rail | 40mm |
9’ – 2-2/10” x 19’ – 8-2/10” | 1-1/2” double glass | 2200 lb | 2-3/4” per rail | 1-9/16” |
MAX DIMENSIONS / PANEL | GLAZING THICKNESS | WEIGHT / PANEL | FRAME WIDTH | FRAME HEIGHT |
---|---|---|---|---|
2,8 x 6,0m | 54mm triple glass | 1500 kg | 86mm per rail | 40mm |
9’ – 2-2/10” x 19’ – 8-2/10” | 2-1/8” triple glass | 3300 lb | 3-3/8” per rail | 1-9/16” |

Cutting-edge details
They are a base material in applications that do not require any formability beyond minimal bending and/or roll-forming.
- • POLYGONIC SHAPES
- • SECURE DRAINAGE
- • SECURE LOCKING
- • UNOBSTRUCTED VIEW
- • EASY & SAFE SLIDING MECHANISM
