Visible

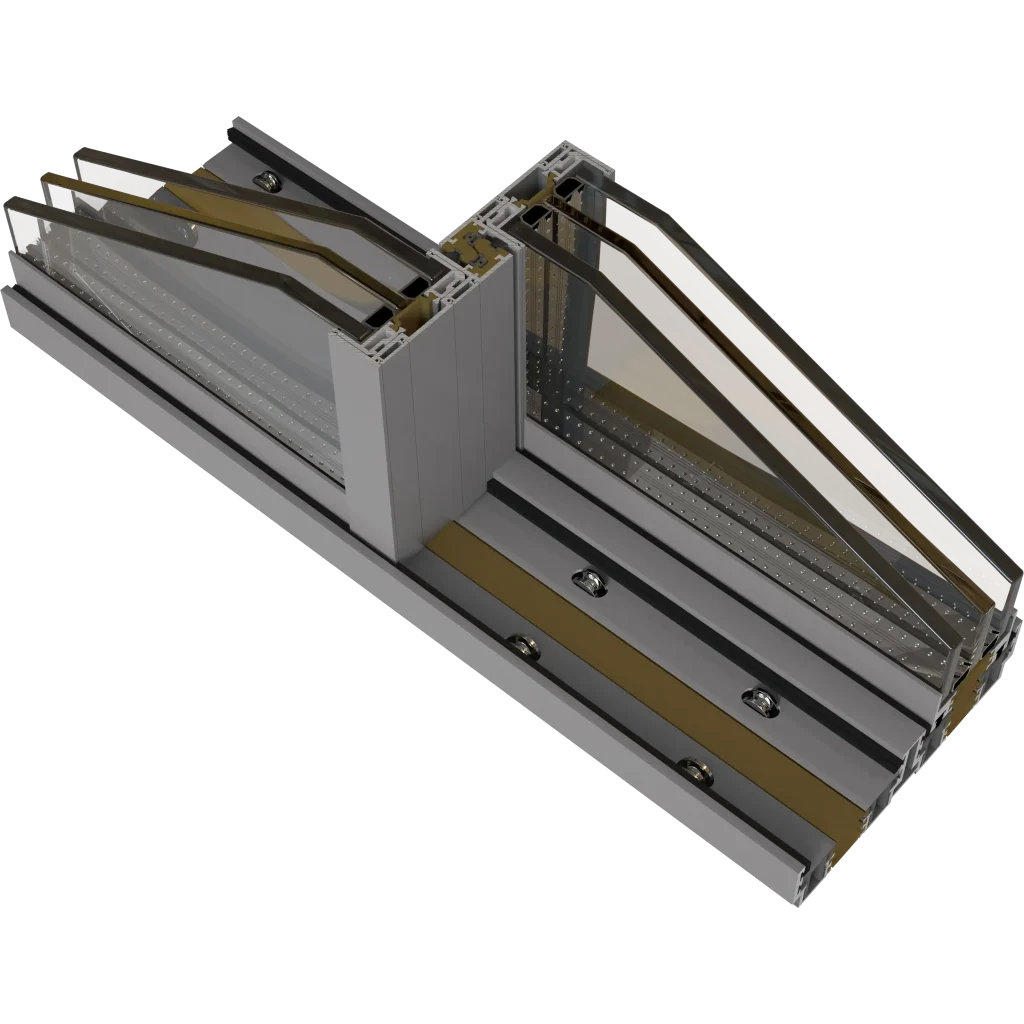

SLIDING M-SL

The new, pioneering “U-minimal Frames System” is the most state-of-the-art answer to the market’s latest architectural requirements, by far surpassing the capabilities of the competition’s series. The “U-minimal Sliding Doors and Windows System (M-SL)” with bearings, ensures a perfect, easy and silent slide of frames with large glazing, providing at the same time exceptional clarity and brightness of the space that is placed. The “U-minimal M-SL system” can optionally accept an electric opening or closing system offering further comfort and modern equipment to the new innovative system. The “U-minimal M-SL system” offers enhanced safety, guaranteed by a combination of multi-point locks, which may be automated and connected to any central control system. The new “U-minimal M-SL System” is accompanied by components of excellent quality and workmanship.The system’s finish is completed with your choice of colour from powder coating. The “U-minimal M-SL 38” has the ability to accept Double Energy Glazing of total cross sections of 38mm, while the “U-minimal M-SL 54” may accept Triple Energy Glazing (54 mm). The two series can be developed, apart from the classic single-rail, in double-driver Bi-rail, in triple 3-rail, in quadruple 4-rail and in quintuple 5-rail, always maintaining the same static values.
MAX DIMENSIONS / PANEL | GLAZING THICKNESS | WEIGHT / PANEL | FRAME WIDTH | FRAME HEIGHT |
---|---|---|---|---|
2,8 x 6,0m | 38mm double glass | 1000 kg | 70mm per rail | 40mm |
9’ – 2-2/10” x 19’ – 8-2/10” | 1-1/2” double glass | 2200 lb | 2-3/4” per rail | 1-9/16” |
MAX DIMENSIONS / PANEL | GLAZING THICKNESS | WEIGHT / PANEL | FRAME WIDTH | FRAME HEIGHT |
---|---|---|---|---|
2,8 x 6,0m | 54mm triple glass | 1500 kg | 86mm per rail | 40mm |
9’ – 2-2/10” x 19’ – 8-2/10” | 2-1/8” triple glass | 3300 lb | 3-3/8” per rail | 1-9/16” |

Cutting-edge details
Superior materials. Precision engineering. Unmatched reliability. Our products are designed to meet the highest performance standards. They deliver exceptional durability and consistent results across demanding applications.
- • POLYGONIC SHAPES
- • SECURE DRAINAGE
- • SECURE LOCKING
- • UNOBSTRUCTED VIEW
- • EASY & SAFE SLIDING MECHANISM
