the red li PRODUCT

MINIMAL LINES

POCKET M-PCt [38][54]
the red li PRODUCT

MINIMAL LINES

POCKET M-PCt [38][54]
the red li PRODUCT

MINIMAL LINES

POCKET M-PCt [38][54]
HIDDEN
FRAME
TUNNEL
SEALING
SECURE
LOCKING
UNOBSTRUCTED
VIEW
MULTIPLE PANEL &
TUNNEL COMBINATION
HIDDEN
FRAME
TUNNEL
SEALING
SECURE
LOCKING
UNOBSTRUCTED
VIEW
MULTIPLE PANEL &
TUNNEL COMBINATION

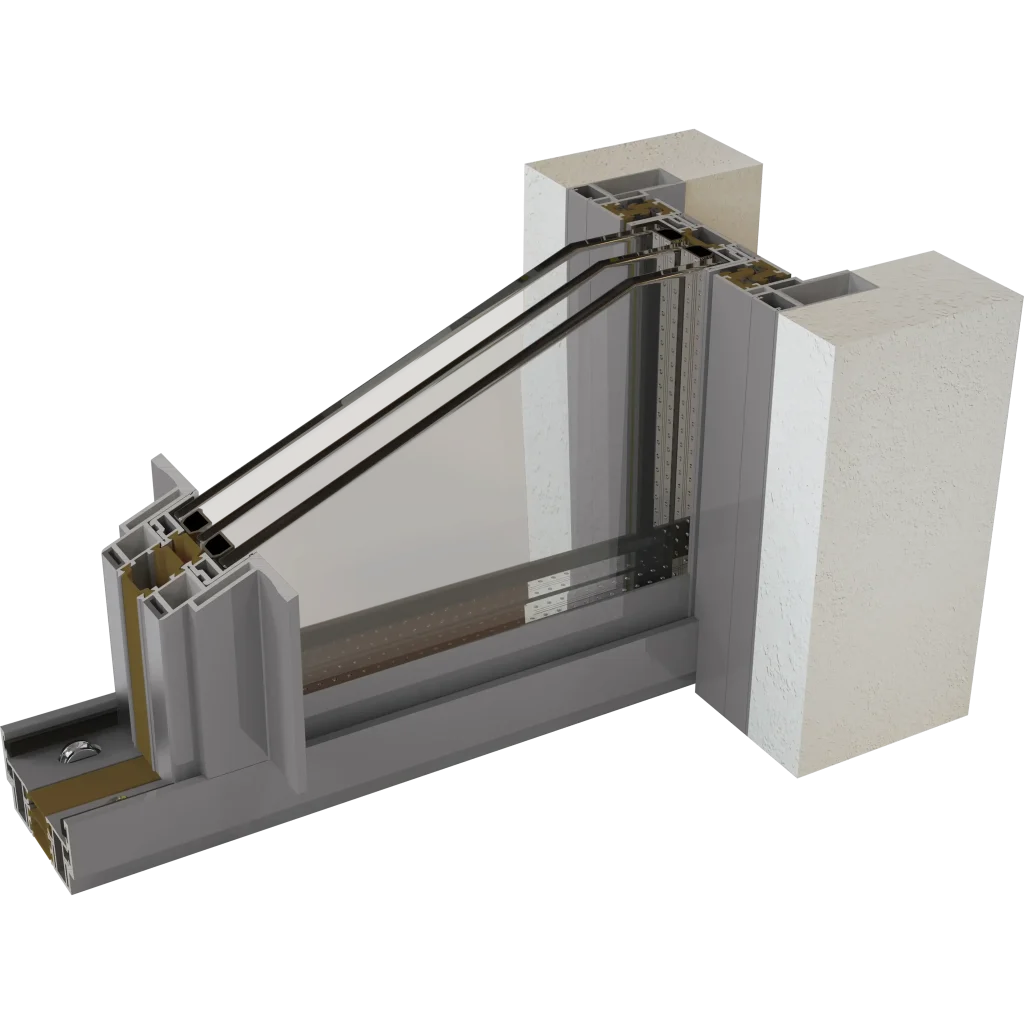

the red li POCKET

M-PCt

“U-minimal Pocket (M-PCt)” is the perfect solution for any opening. Offering the same visual effect as the Sliding of the series, it provides a visually superior effect at the opening, leaving the field of vision almost intact as the frames visually disappear into the pocket of the window.

“U-minimal Pocket (M-PCt)” maintains aluminum thermal break and sealing in the pocket. Maintains smooth and silent scrolling of the system in and out of the pocket. It can be combined with all the u-minimal series systems ensuring an incredible minimal experience.

“U-minimal Pocket (M-PCt)” can be equipped with multiple panels, fitted into one or more tunnels with easy and secure locking mechanisms. It also can be combined with sliding, pocket mosquito screens for a far more secure and safe interior sealing.

The “U-minimal M-SL system” offers enhanced safety, guaranteed by a combination of multi-point locks, which may be automated and connected to any central control system.

“U-minimal Pocket (M-PCt)” system, with its smooth and combined operation of both sliding panels and pocket mechanism can provide the highest levels of security and comfort.
the red li POCKET

M-PCt

“U-minimal Pocket (M-PCt)” is the perfect solution for any opening. Offering the same visual effect as the Sliding of the series, it provides a visually superior effect at the opening, leaving the field of vision almost intact as the frames visually disappear into the pocket of the window.

“U-minimal Pocket (M-PCt)” maintains aluminum thermal break and sealing in the pocket. Maintains smooth and silent scrolling of the system in and out of the pocket. It can be combined with all the u-minimal series systems ensuring an incredible minimal experience.

“U-minimal Pocket (M-PCt)” can be equipped with multiple panels, fitted into one or more tunnels with easy and secure locking mechanisms. It also can be combined with sliding, pocket mosquito screens for a far more secure and safe interior sealing.

The “U-minimal M-SL system” offers enhanced safety, guaranteed by a combination of multi-point locks, which may be automated and connected to any central control system.

“U-minimal Pocket (M-PCt)” system, with its smooth and combined operation of both sliding panels and pocket mechanism can provide the highest levels of security and comfort.
the red li POCKET

M-PCt

“U-minimal Pocket (M-PCt)” is the perfect solution for any opening. Offering the same visual effect as the Sliding of the series, it provides a visually superior effect at the opening, leaving the field of vision almost intact as the frames visually disappear into the pocket of the window.

“U-minimal Pocket (M-PCt)” maintains aluminum thermal break and sealing in the pocket. Maintains smooth and silent scrolling of the system in and out of the pocket. It can be combined with all the u-minimal series systems ensuring an incredible minimal experience.

“U-minimal Pocket (M-PCt)” can be equipped with multiple panels, fitted into one or more tunnels with easy and secure locking mechanisms. It also can be combined with sliding, pocket mosquito screens for a far more secure and safe interior sealing.

The “U-minimal M-SL system” offers enhanced safety, guaranteed by a combination of multi-point locks, which may be automated and connected to any central control system.

“U-minimal Pocket (M-PCt)” system, with its smooth and combined operation of both sliding panels and pocket mechanism can provide the highest levels of security and comfort.

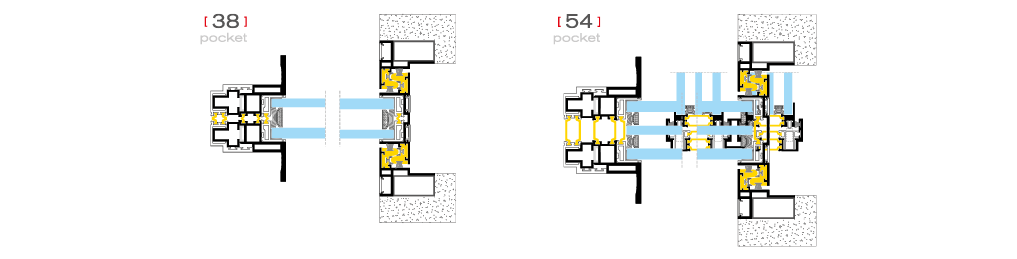

the red li DESCRIPTION
38
MAX DIMENSIONS / PANEL GLAZING THICKNESS WEIGHT / PANEL FRAME WIDTH FRAME HEIGHT
2,8 x 6,0m 38mm double glass 1000 kg 70mm per rail 40mm
9’ – 2-2/10” x 19’ – 8-2/10” 1-1/2” double glass 2200 lb 2-3/4” per rail 1-9/16”
54
MAX DIMENSIONS / PANEL GLAZING THICKNESS WEIGHT / PANEL FRAME WIDTH FRAME HEIGHT
2,8 x 6,0m 54mm triple glass 1500 kg 86mm per rail 40mm
9’ – 2-2/10” x 19’ – 8-2/10” 2-1/8” triple glass 3300 lb 3-3/8” per rail 1-9/16”
the red li DESCRIPTION
38
MAX DIMENSIONS / PANEL GLAZING THICKNESS WEIGHT / PANEL FRAME WIDTH FRAME HEIGHT
2,8 x 6,0m 38mm double glass 1000 kg 70mm per rail 40mm
9’ – 2-2/10” x 19’ – 8-2/10” 1-1/2” double glass 2200 lb 2-3/4” per rail 1-9/16”
54
MAX DIMENSIONS / PANEL GLAZING THICKNESS WEIGHT / PANEL FRAME WIDTH FRAME HEIGHT
2,8 x 6,0m 54mm triple glass 1500 kg 86mm per rail 40mm
9’ – 2-2/10” x 19’ – 8-2/10” 2-1/8” triple glass 3300 lb 3-3/8” per rail 1-9/16”
the red li DESCRIPTION
38
MAX DIMENSIONS / PANEL 2,8 x 6,0m 9’ – 2-2/10” x 19’ – 8-2/10”
GLAZING THICKNESS 38mm double glass 1-1/2” double glass
WEIGHT / PANEL 1000 kg 2200 lb
FRAME WIDTH 70mm per rail 2-3/4” per rail
FRAME HEIGHT 40mm 1-9/16”
54
MAX DIMENSIONS / PANEL 2,8 x 6,0m 9’ – 2-2/10” x 19’ – 8-2/10”
GLAZING THICKNESS 54mm triple glass 2-1/8” triple glass
WEIGHT / PANEL 1500 kg 3300 lb
FRAME WIDTH 86mm per rail 3-3/8” per rail
FRAME HEIGHT 40mm 1-9/16”
