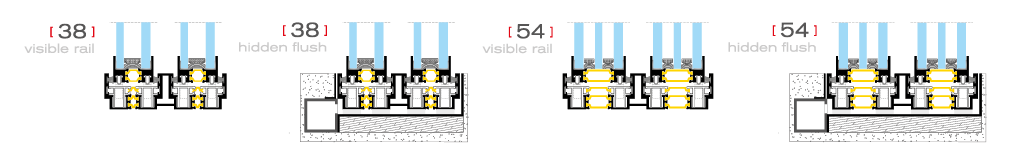

[38][54]
FIXED M-FXd
The “U-minimal Fixed & Slide” and “U-minimal Fixed (M-FXd)” systems are key combinations of the series, offering absolute sealing in one of the two parts that consists of allowing the overall opening of the other, superimposed to it.
“U-minimal Fixed & Slide” is provided in many combinations of multiple panels and rails, covering even the exposures of parabolic formations.
“U-minimal Fixed & Slide” systems can fit at any polygonic opening as they can be manufactured in rectangular, triangular, trapezoid and many more shapes.
“U-minimal Fixed & Slide (M-FXd)” systems are built as fixed, maintaining the same aesthetic harmony in all the openings of the space.
“U-minimal Fixed & Slide (M-FXd)” is the most thermo-efficient solution of the ULTRA minimal series, combining inseparable aesthetic and thermal performance as well as economy in construction.
| MAX DIMENSIONS / PANEL | GLAZING THICKNESS | WEIGHT / PANEL | FRAME WIDTH | FRAME HEIGHT |
|---|---|---|---|---|
| 2,8 x 6,0m 9’–2-2/10” x 19’–8-2/10” | 38mm double glass 1-1/2” double glass | 1000 kg 2200 lb | 70mm per rail 2-3/4” per rail | 40mm 1-9/16” |
| MAX DIMENSIONS / PANEL | GLAZING THICKNESS | WEIGHT / PANEL | FRAME WIDTH | FRAME HEIGHT |
|---|---|---|---|---|

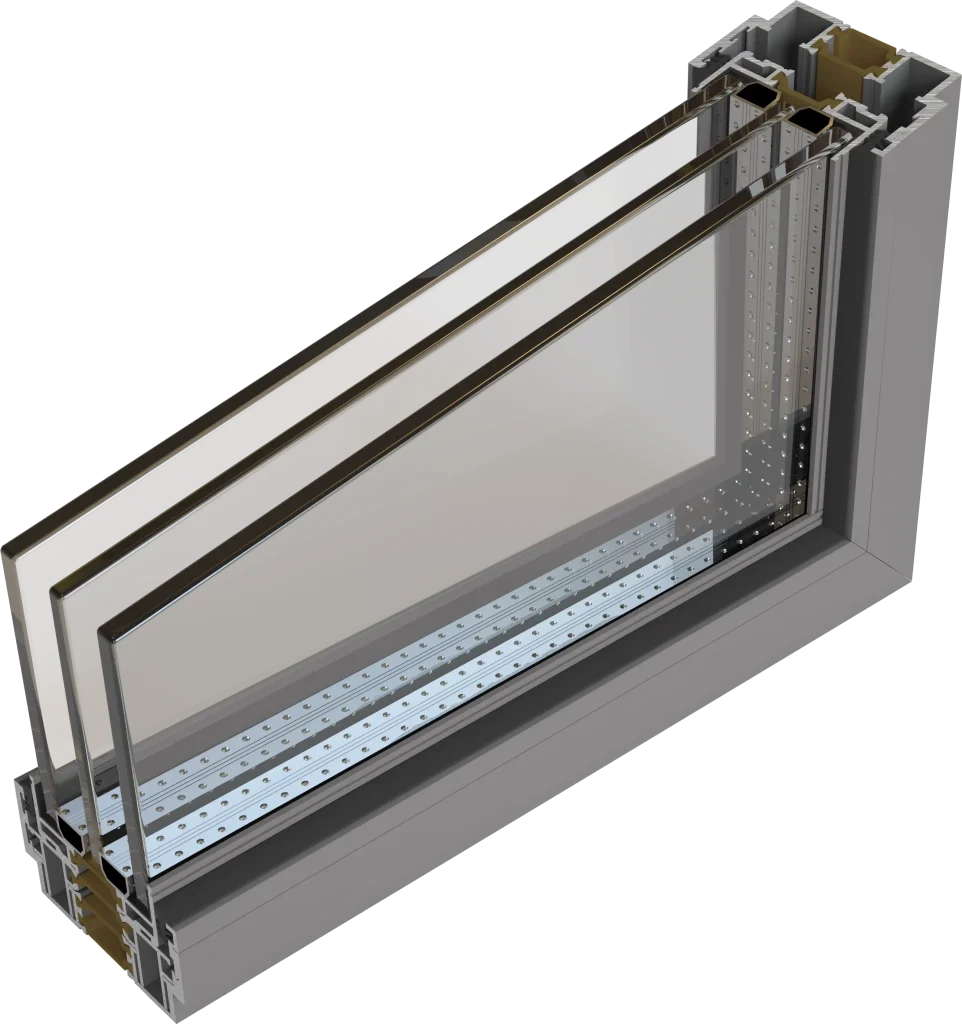

| 2,8 x 6,0m 9’–2-2/10” x 19’–8-2/10” | 54mm triple glass 2-1/8” triple glass | 1500 kg 3300 lb | 86mm per rail 3-3/8” per rail | 40mm 1-9/16” |
Cutting-edge details
They are a base material in applications that do not require any formability beyond minimal bending and/or roll-forming.
- • POLYGONIC SHAPES
- • SECURE DRAINAGE
- • SECURE LOCKING
- • UNOBSTRUCTED VIEW
- • EASY & SAFE SLIDING MECHANISM
